Flexible Ducting

Durable and adaptable flexible ducting systems for ventilation, air distribution, and exhaust applications.

HT1100 High Temperature Ducting

Designed for applications requiring extremely high temperatures, such as iron and steel works, shipbuilding, large engine exhaust fume extraction, aircraft manufacturing, general engineering, and defense industries.

Specifications

Temperature Range: Up to 1100°C
Construction: Flexible hose suitable for high-temperature applications

Applications

Iron and steel works
Shipbuilding
Large engine exhaust fume extraction
Aircraft manufacturing
General engineering
Defense industries

HT650 High Temperature Ducting

Suitable for exhaust fume extraction in vehicle test beds and other applications requiring high-temperature ducting.

Specifications

Temperature Range:Up to 650°C
Construction:High-temperature hose for exhaust fume extraction

Applications

Vehicle test beds
High-temperature exhaust fume extraction

Flexflyte L8 Silicone Ducting

A 2-ply high-temperature silicone ducting suitable for fume extraction, exhaust extraction, and conveying hot air.

Specifications

Construction:2-ply silicone ducting
Temperature Range: Up to 300°C

Applications

Fume extraction
Exhaust extraction
Conveying hot air

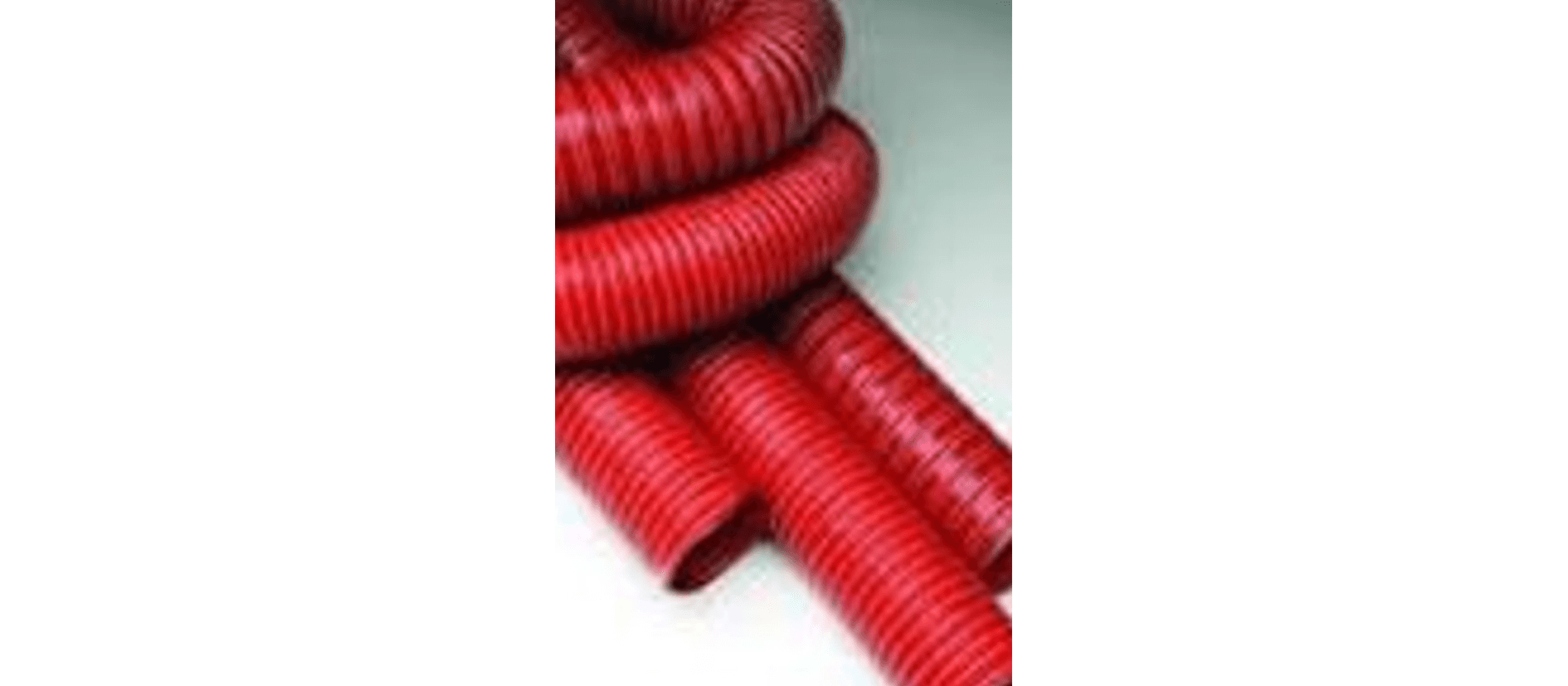

Flexflyte U8 Silicone Ducting

Highly flexible heater ducting with a high tensile spring helix, covered with silicone-coated and impregnated glass fibre fabric.

Specifications

Temperature Range: -60°C to +300°C
Length: 4 meters

Applications

Handling air and fumes where extremes of temperatures are involved.

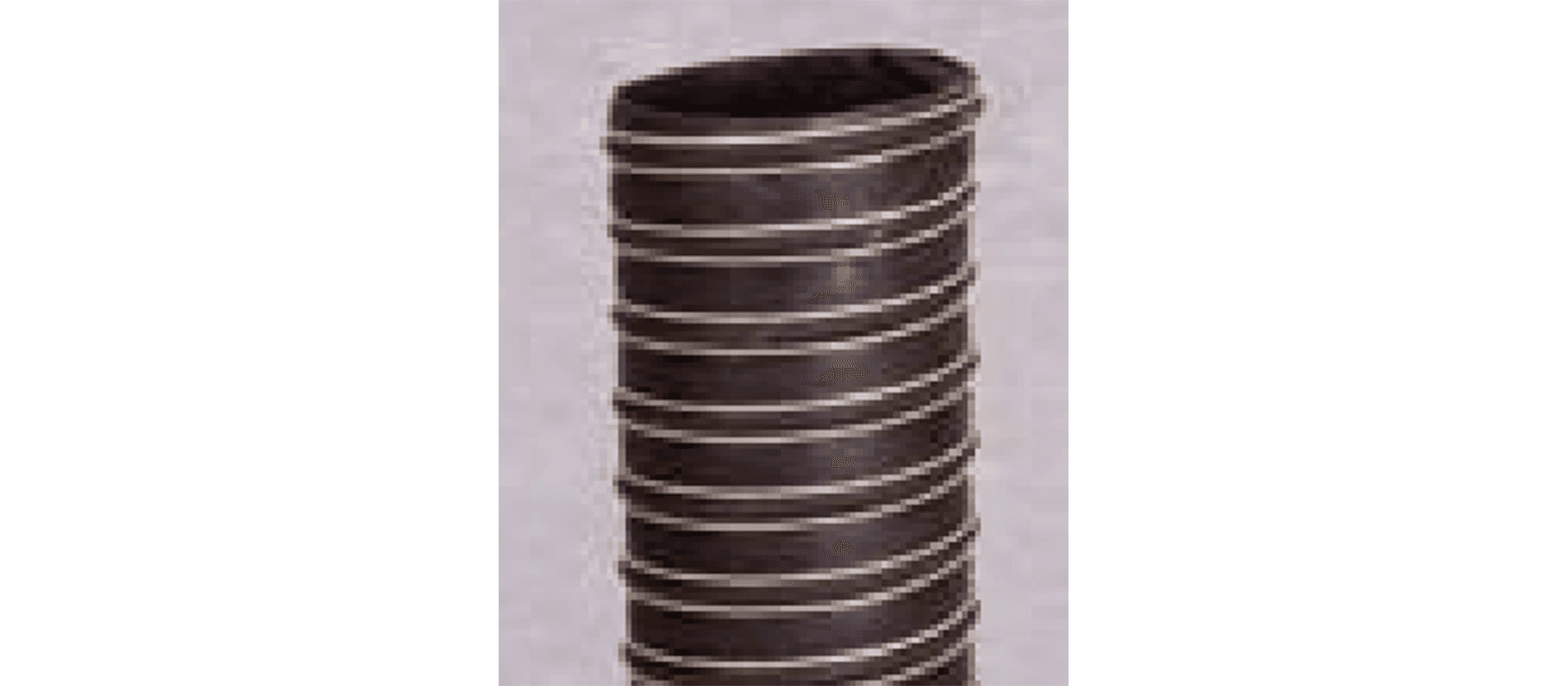

Flexflyte L1 Neoprene Ducting

A 2-ply flexible neoprene ducting with a smooth inner lining, suitable for conveying hot or cold air, fumes, or light non-abrasive dust at low pressures.

Specifications

Temperature Range: Up to 150°C
Length: 4 meters

Applications

Conveying hot or cold air, fumes, light non-abrasive dust.

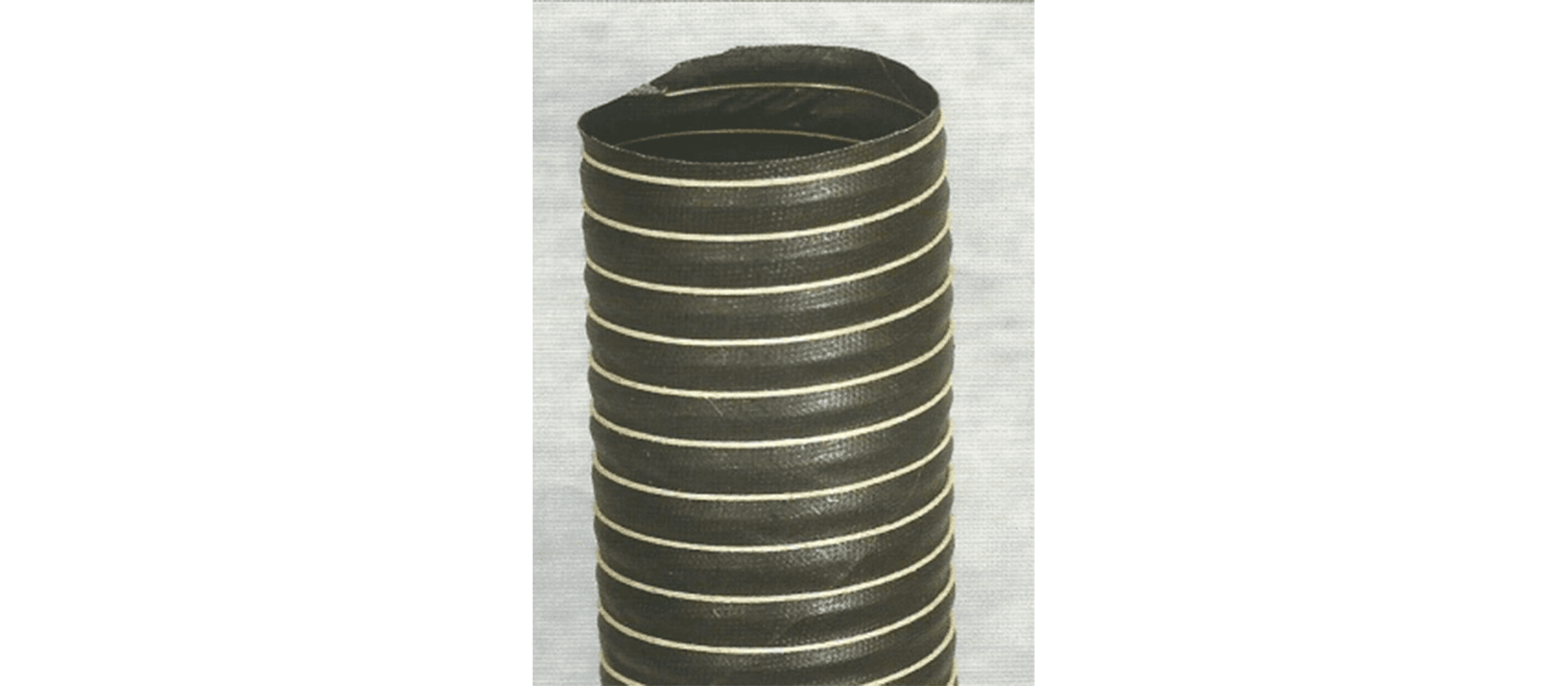

Flexflyte U1 Neoprene Ducting

High-temperature flexible ducting made with high tensile spring helix, covered with neoprene-coated and impregnated glass fibre fabric.

Specifications

Temperature Range: -50°C to +150°C
Length: 4 meters

Applications

Conveying hot or cold air, fumes, light non-abrasive dust in installations

Spiraflex PVC1 Ventilation Ducting

Heating and ventilation ducting also used for marquee ducting. Lightweight and durable flexible ducting.

Specifications

Temperature Range: -20°C to +90°C
Diameters: 120mm to 1500mm
Length: Up to 20 meters

Applications

Warm or cool air movement
Ventilation in marquees

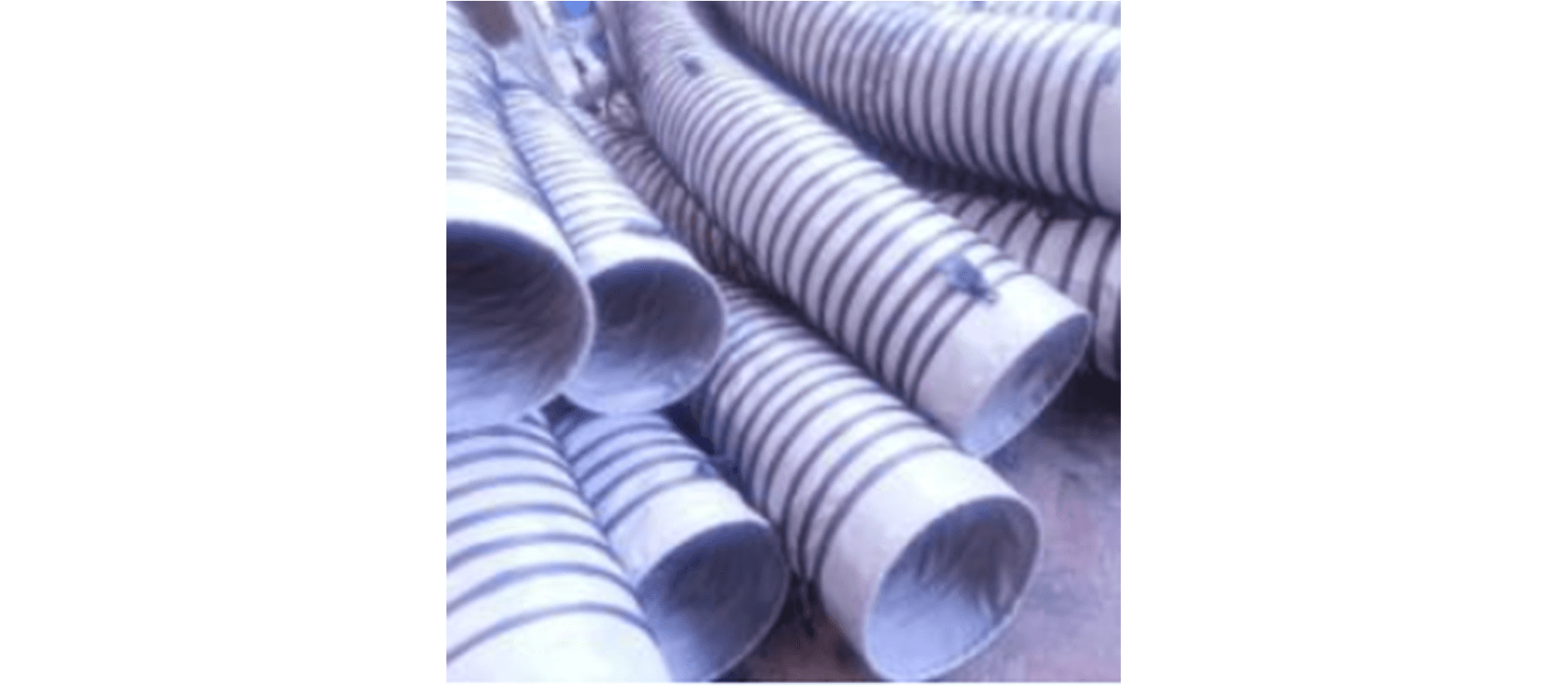

Spiraflex PVC2 Extraction Ducting

A flexible extraction and ventilation ducting made from heavier material than PVC1, suitable for low vacuum suction ducting.

Specifications

Temperature Range:-20°C to +90°C
Diameters: 120mm to 1500mm

Applications

Low vacuum suction ducting
Ventilation

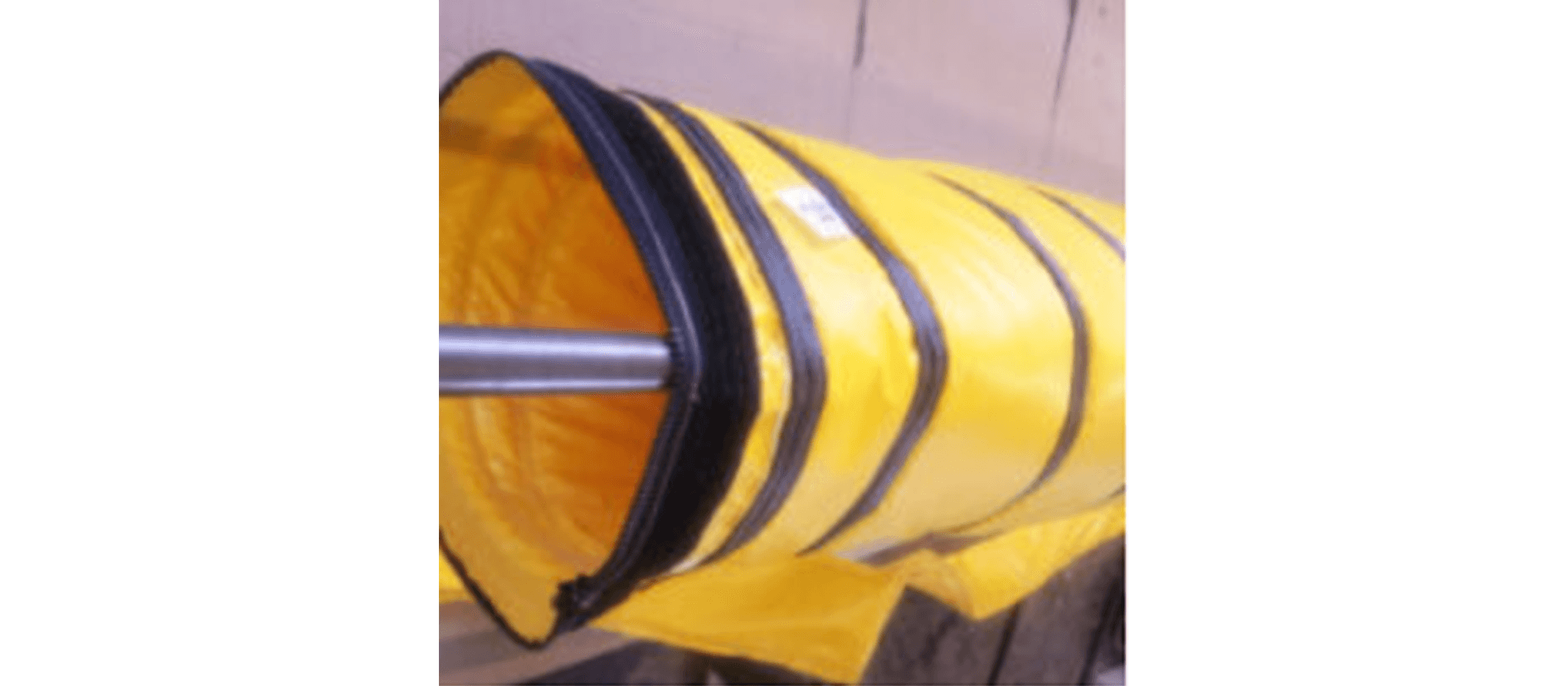

Spiraflex Insulated Ducting

Large diameter flexible insulated ducting for heating and ventilation, crop drying, and exhaust extraction.

Specifications

Construction: 10mm of foam sandwiched between 2 layers of fabric
Can be made as wire reinforced or layflat style ducting

Applications

Heating and ventilation
Crop drying
Exhaust extraction

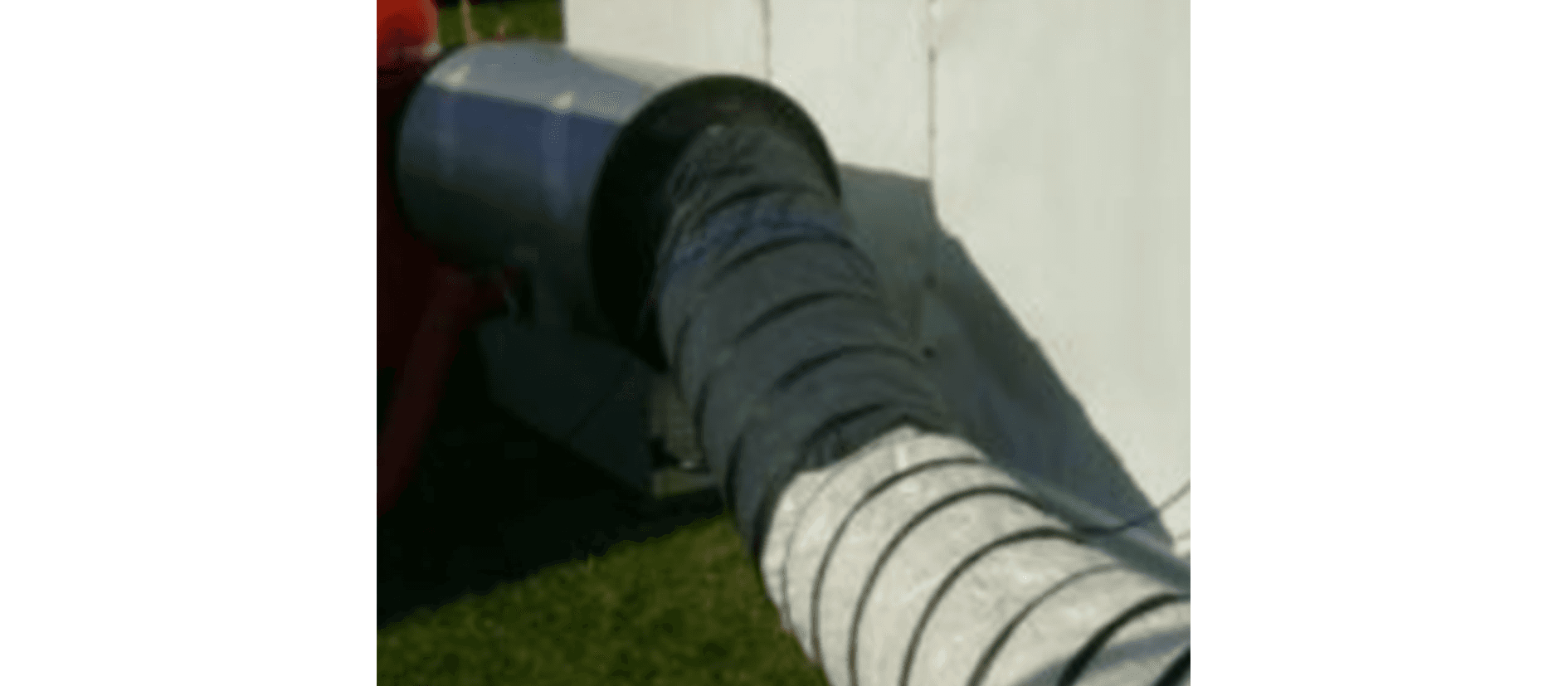

Spiraflex 2 Part Composite Ducting

Made with hypalon start joined to PVC1 or 2, used when the start of the heater is too hot for PVC but cools down over the length of duct.

Specifications

Construction: Hypalon start joined to PVC1 or 2
Various end fittings available

Applications

Heater ducting where temperature decreases along the length

Spiraflex Layflat Ducting

Flexible layflat ducting, usually used as mining ventilation ducting, also used for warm/cool air movement in tents, marquees, above false ceilings, and in temporary buildings.

Specifications

Temperature Range: Same as PVC1 & 2
Length: Up to 20 meters
Supplied with rings or Velcro ends for joining lengths together

Applications

Mining ventilation
Warm/cool air movement in temporary structures

PU-FLEX-K

Lightweight, abrasion-resistant PU suction and exhaust hose, suitable for various industrial applications.

Specifications

Temperature Range: -25°C to +85°C
Inner Diameter: 18 to 305 mm
Color: Transparent
Food Safe: Yes

Applications

Suction and exhaust

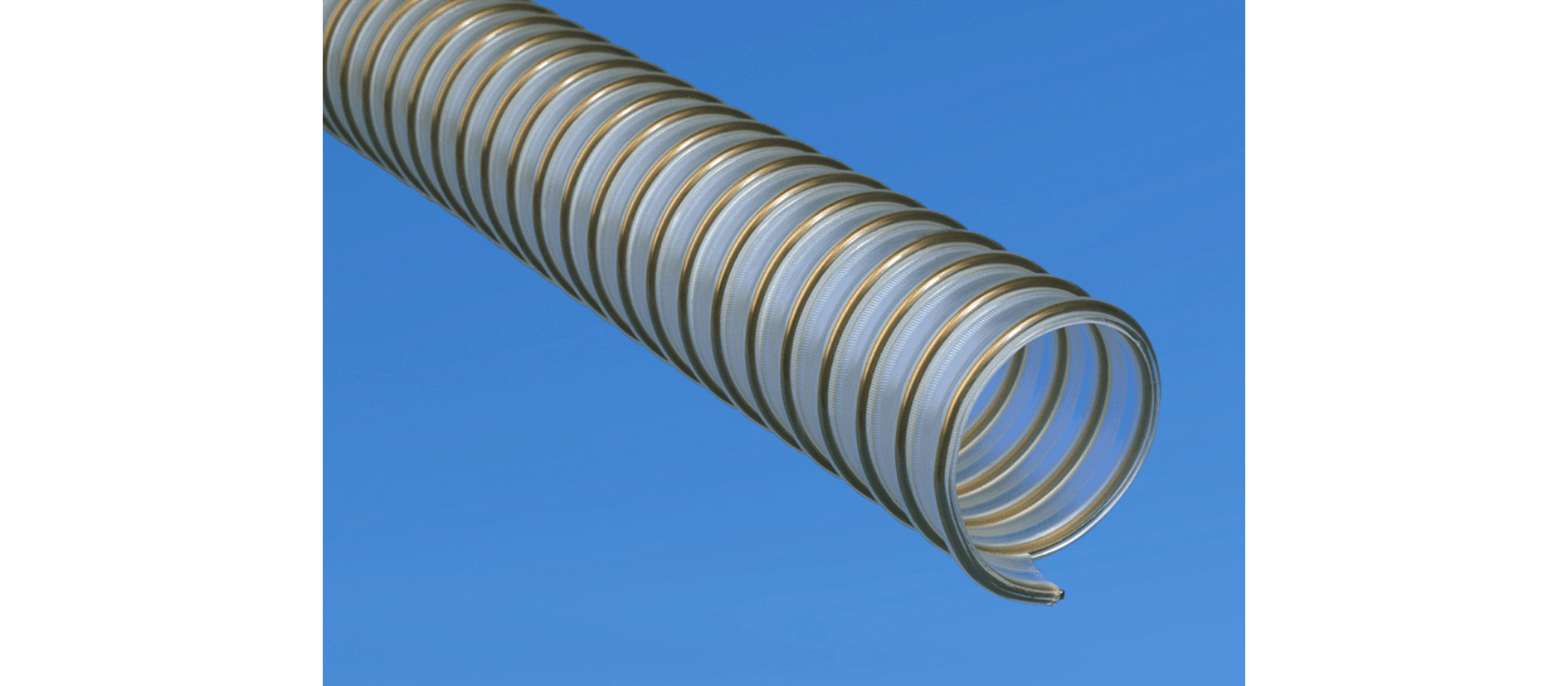

PU-FLEX-L/F-ANTISTAT

Lightweight, abrasion-resistant PU suction and exhaust hose with flame-retardant and antistatic properties.

Specifications

Temperature Range: -40°C to +100°C
Inner Diameter: 25 to 500 mm
Color: Transparent
Flame-Retardant: Yes
Antistatic Finish: Yes

Applications

Suction and exhaust in environments requiring antistatic and flame-retardant properties

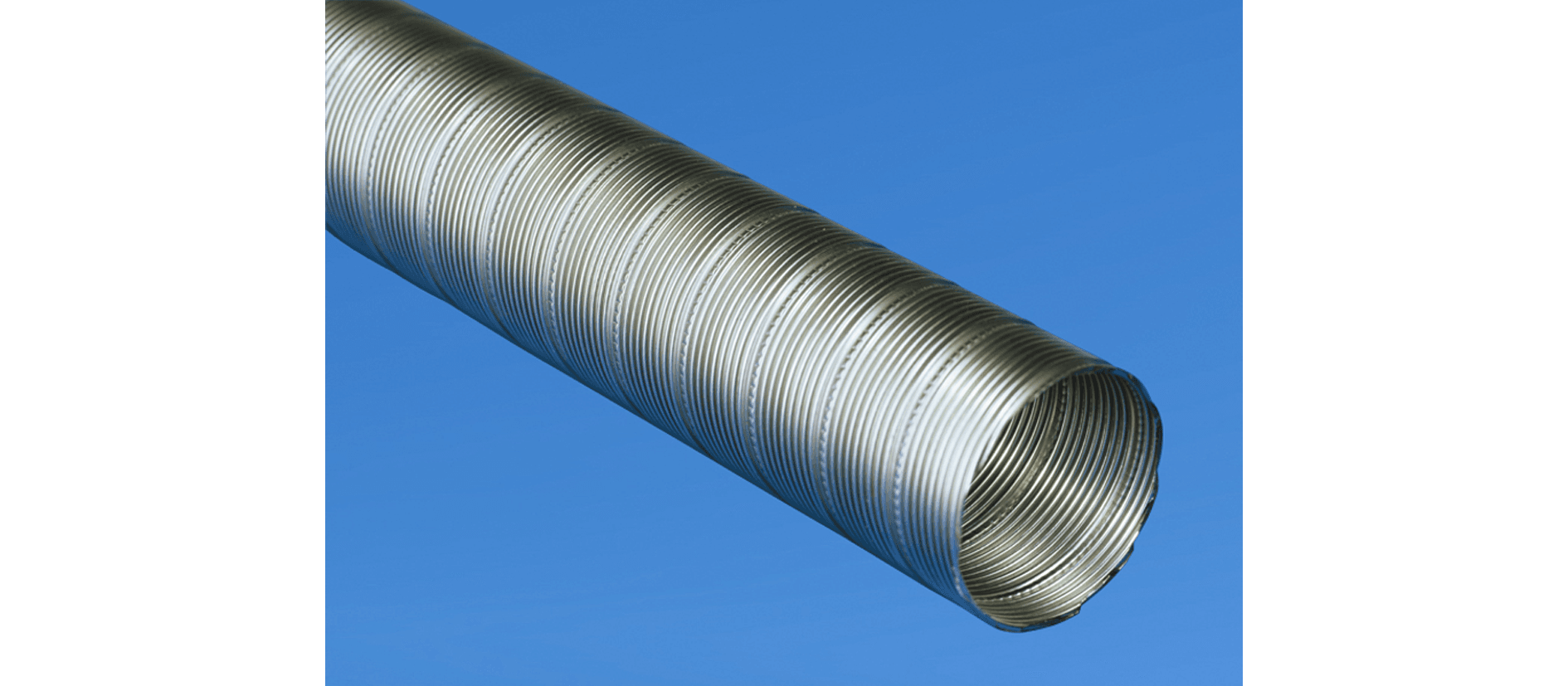

THERMAFLEX - HT

Single-ply stainless steel high-temperature hose suitable for extreme temperature applications.

Specifications

Temperature Range: -50°C to +600°C
Inner Diameter: 14.5 to 100 mm
Material: Stainless Steel (1.4436)

Applications

High-temperature applications

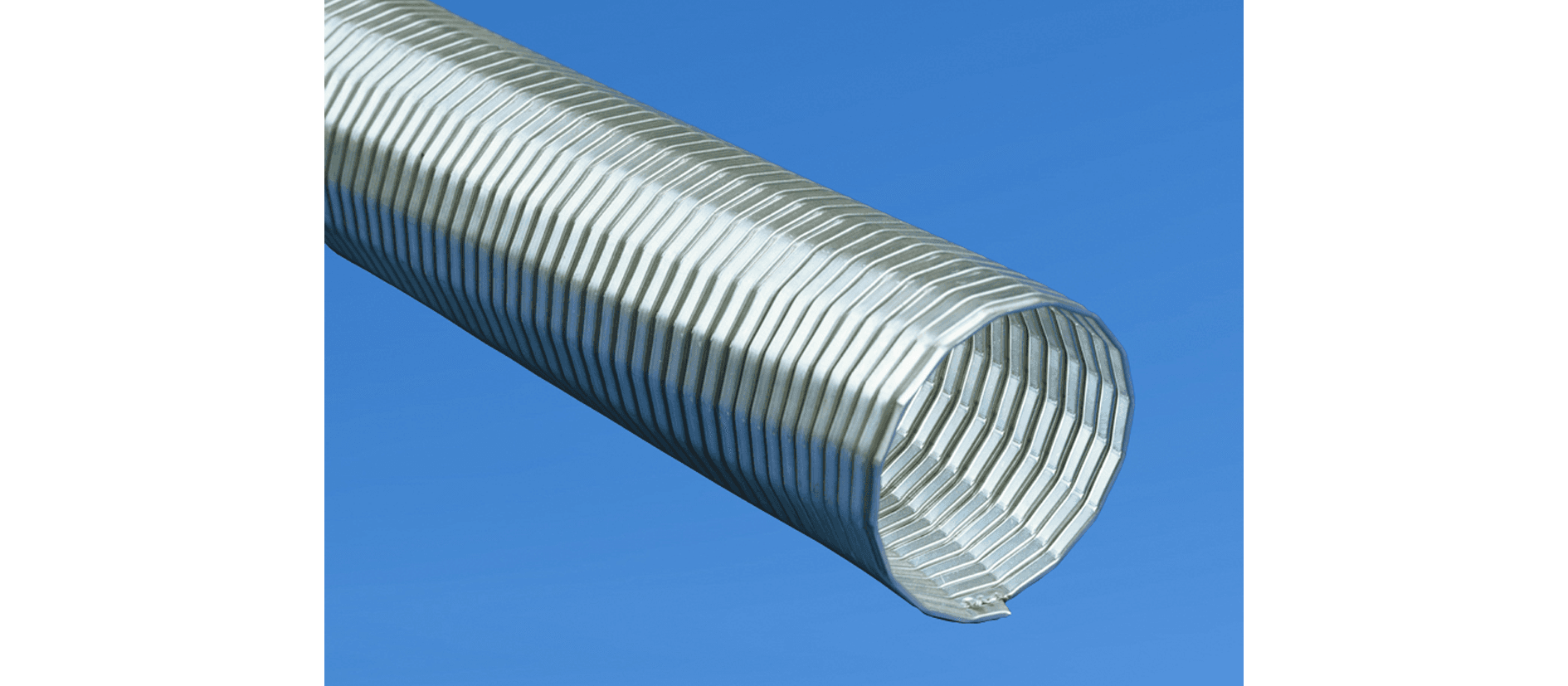

METALLSCHLAUCH - STG

Heavy-duty galvanized steel suction and exhaust hose for demanding industrial applications.

Specifications

Temperature Range: -10°C to +400°C
Inner Diameter: 20 to 400 mm
Material: Galvanized Steel

Applications

Suction and exhaust in heavy industrial environments

PU-FLEX-K/FOOD

Lightweight, abrasion-resistant PU suction and exhaust hose designed for food industry applications.

Specifications

Temperature Range: -25°C to +85°C
Inner Diameter: 22 to 203 mm
Color: Transparent
Food Safe: Yes

Applications

Suction and exhaust in food processing environments

FLEXFLYTE - SILFOOD-P

Medium-weight silicone pressure hose suitable for food-grade applications.

Specifications

Temperature Range: -60°C to +170°C
Inner Diameter: 3 to 38 mm
Color: Translucent
Food Safe: Yes

Applications

Pressure applications in food and beverage industries

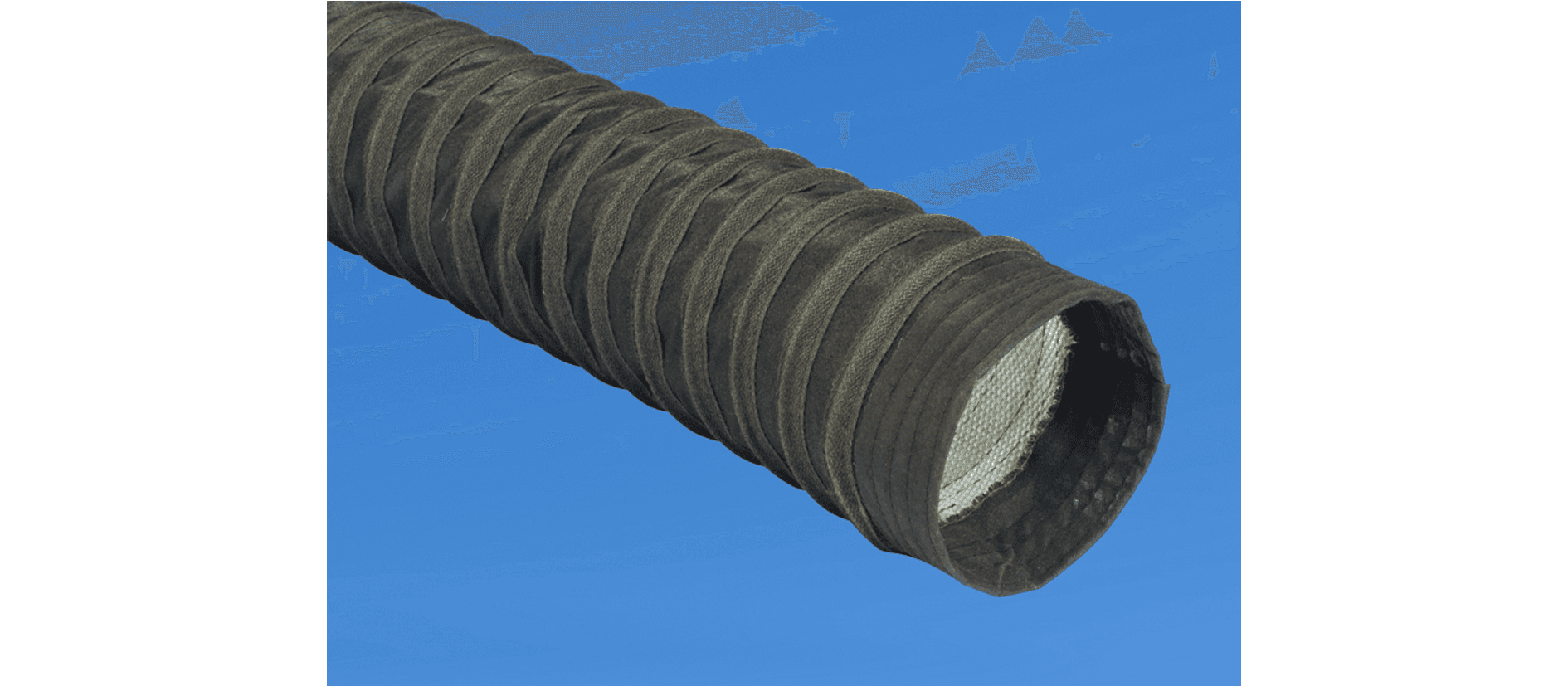

SPIRATUBE - TS500

High-temperature hose with external abrasion protection, suitable for extreme temperature applications.

Specifications

Temperature Range: -70°C to +500°C
Inner Diameter: 102 to 508 mm
Color: Olive
Flame-Retardant: Yes

Applications

High-temperature air and gas transfer

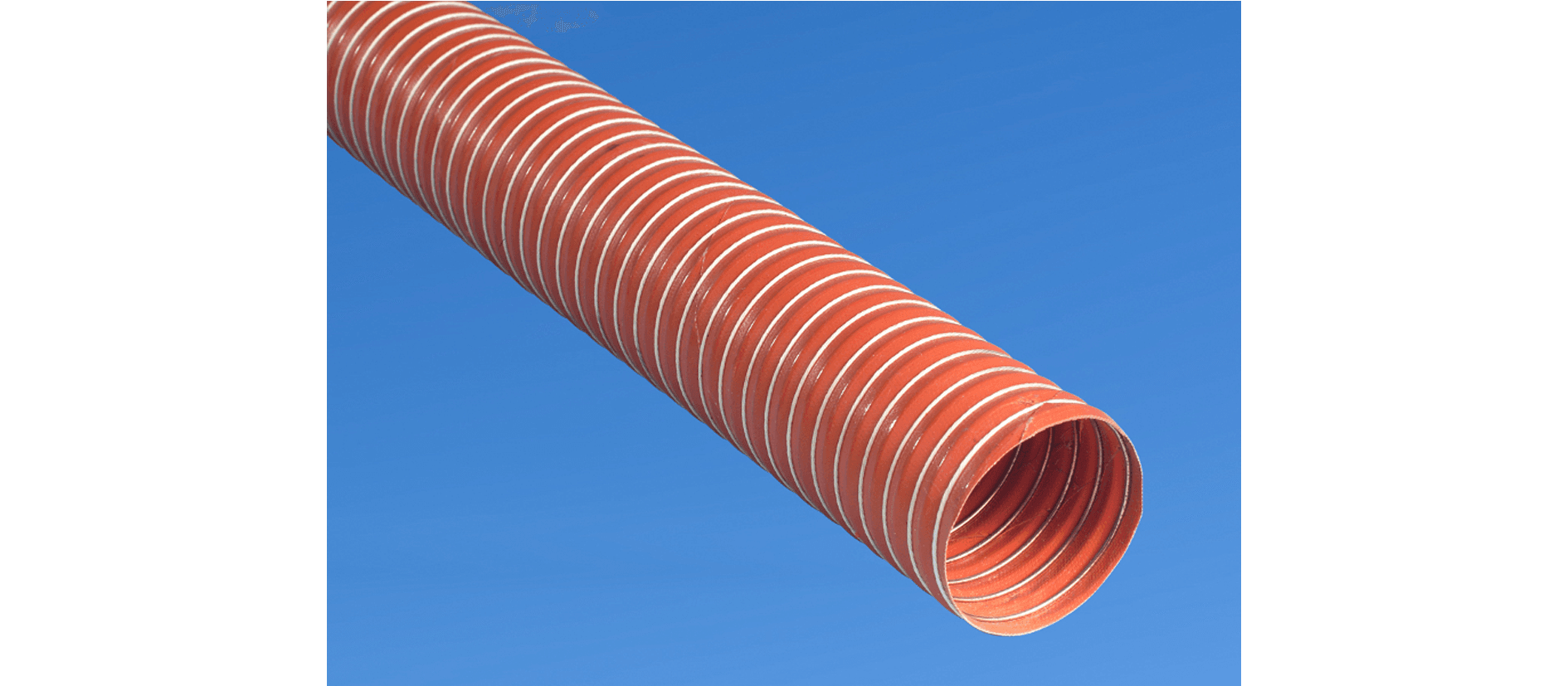

FLEXFLYTE - SI 1

Highly flexible silicone suction and fan hose designed for hot air applications.

Specifications

Temperature Range: -70°C to +250°C
Inner Diameter: 13 to 350 mm
Color: Red
Material: Silicone Coated Glass Fabric

Applications

Hot air transfer

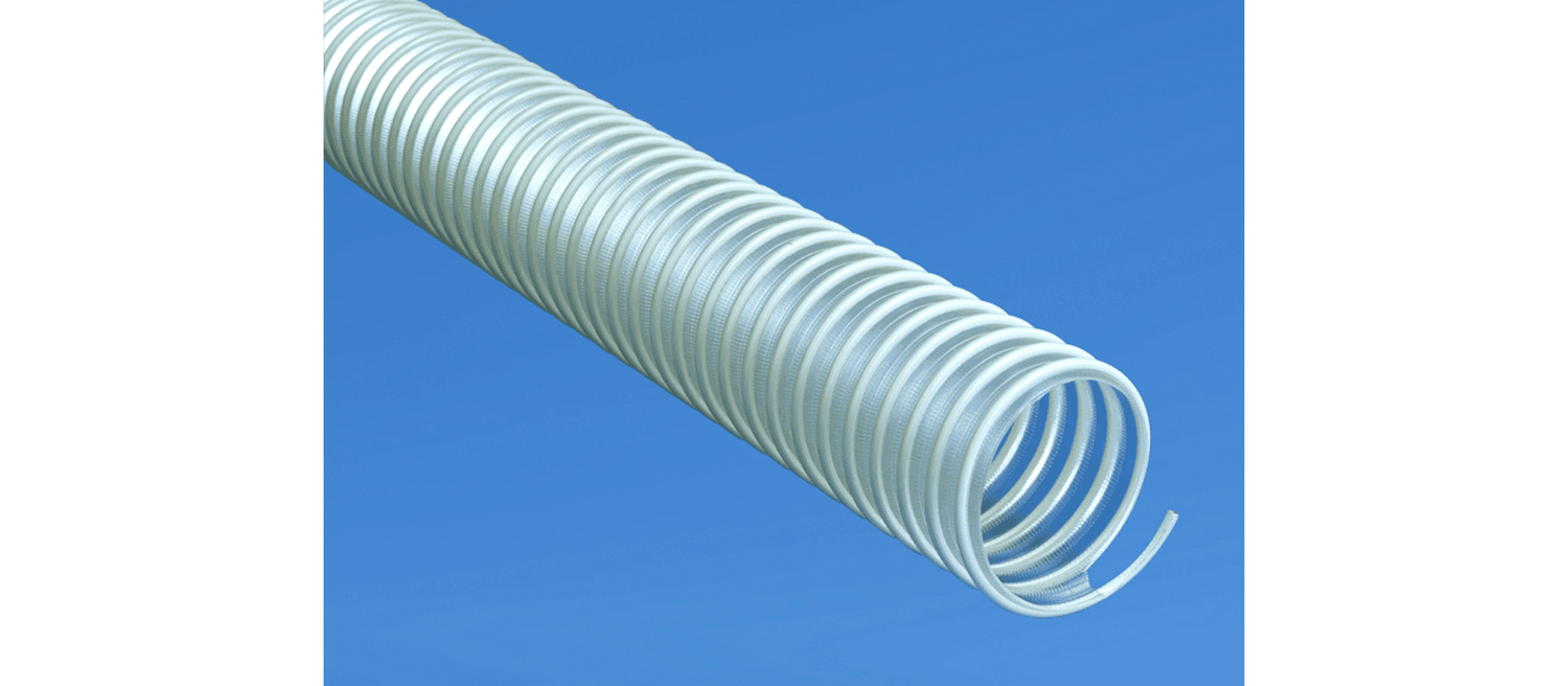

FLEXTRACT - M/T

Medium-weight PVC suction hose suitable for general-purpose applications.

Specifications

Temperature Range: 0°C to +70°C
Inner Diameter: 13 to 400 mm
Color: Transparent

Applications

General-purpose suction and blower

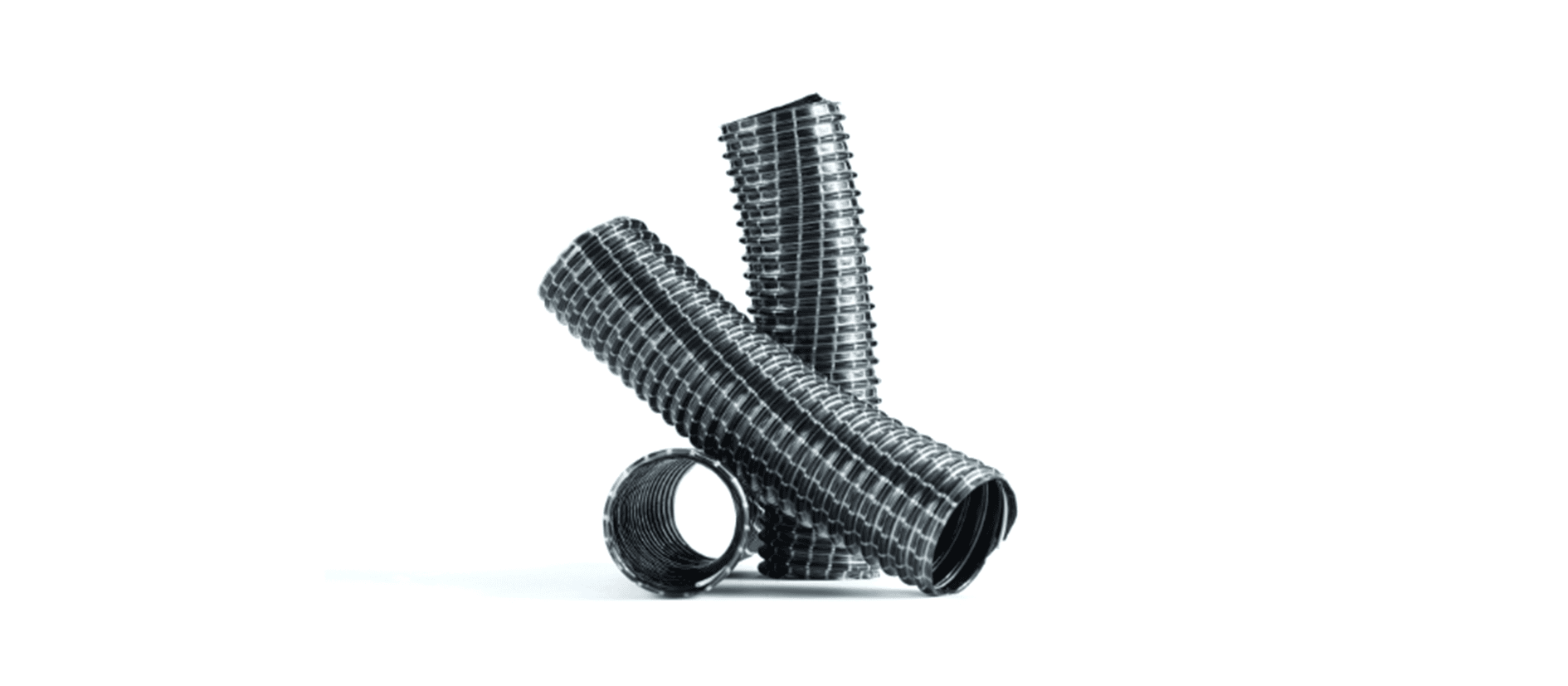

SUPERFLEXTRACT/ANTISTAT

Medium-weight, conductive PVC suction hose designed for environments requiring antistatic properties.

Specifications

Temperature Range: 0°C to +85°C
Inner Diameter: 25 to 51 mm
Color: Black
Antistatic Finish: Yes

Applications

Suction applications in environments where static discharge must be minimized
